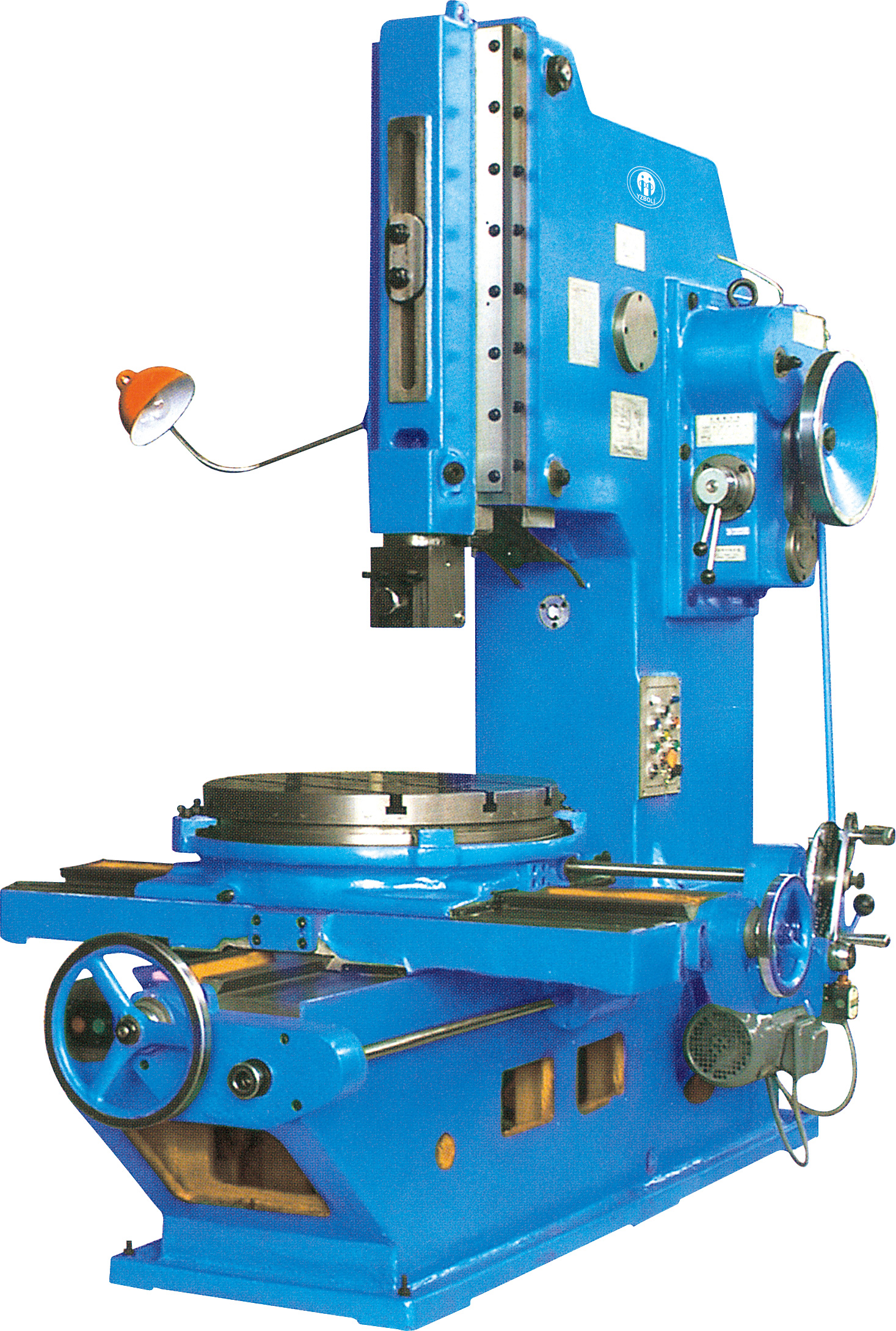

B5020D/B5032D/B5040D Slotting machine

Used to machine various plane, surface and key of workpiece. It is suitable for small workshop.

Machine start and stop is control by a clutch and reciprocation of ram is achieved by a crank connecting link. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on table. And there is a rapid motion device for vertical, horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.

Availability:

Quantity:



Inquire Add to Basket

Model:
B5020D/5032D/5040D
Brand:
BOLI

Product Description

Technical Parameters

Model No.	Unit	B5020D	B5032D	B5040D
max slotting length	mm	200	320	400
number of ram reciprocation per minute	no./min	32,50,80,125	20,32,50,80	20,32,50,80
inclination of ram	°	0-8	0-8	0-8
dia of worktable	mm	460	630	630
adjusting vertical distance of slide block	mm	200	315	315
distance from tool holder surface to column front	mm	480	600	600
distance from tool holder surface to column front	mm	480	600	600
distance from worktable surface to underside of slide rack	mm	320	455	615
distance from worktable surface to underside of slide rack	mm	320	455	615
max longitudinal travel of worktable	mm	420	560	560
max transverse travel of worktable	mm	420	535	535
max rotary angle of worktable	°	360	360	360
feed range of worktable in longitudinal	mm	0.054-1.24	0.054-1.24	0.054-1.24
and transverse direction
rotary feed range of worktable	°	0.035-0.805	0.035-0.805	0.035-0.805
max size of slotting tool(WxH)	mm	25x40	25x40	25x40
max slotting force	Kn	5	8	8
max loading weight on worktable	Kg	400	500	500
T-slot width in center of worktable	mm	18	18	18
main motor power	Kw	3	3	3
rapid transverse motor power	Kw	0.75	0.75	0.75
N.W.	Kg	2200	2500	2900
packing size(LxWxH)	mm	1720x1220x1885	1930x1365x2270	1970x1365x2310
