| Quantity: | |
|---|---|

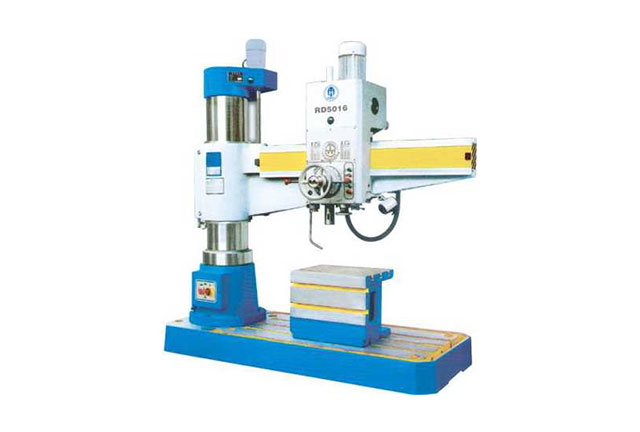

Integrating technology for casting parts is excellent, ensunng high quality of matenal for basic parts,Spindle parts are made by special high quality steel, heat treatment to be made by first class equipments.ensunng high strength and durabililty.Ground gears inskle, ensuring high precision and low noise.
| Standard Accessories | Optional Accessories |
| Rise block | Quick instead chuck |
| Taper sleeve | Tapping chuck |
| Tool releasing wrench | Angle work table |
| Drift | |
| Eyelet bolts | |
| Box work table |
Technical Parameters
| Model No. | Unit | RD3210/RD4010 | RD5016/RD5020 | RD6320 | RD8025 |
max drilling capacity | mm | 32/40(1.26"/1.57") | 50(1.97") | 63(2.48") | 80(3.15") |
distance from spindle to column | mm | 300-1000 (11. 81"~39.37") | 350-1600/350-2000 (13.78"~63.00"/ 13.78"~78.74" | 450-2050 (17.72"~80.71”) | 500-2050 (19.69"~80.71") |
diameter of column | mm | 240(9.45") | 350(13.78") | 450(17.72") | 550(21.65") |
spindle taper | MT4 | MT5 | MT5 | MT6 | |
spindle travel | mm | 280(11.02") | 315(12.40”) | 400(15.75") | 450(17.72") |
spindle speed rang | mm | 32~2500 (1.26"~98.43") | 25~2000 (0.98"-78.74") | 200~1600 | 16~1250 |
(7.87"~63.00") | (0.63"~49.21") | ||||
spindle speed steps | steps | 16 | 16 | 16 | 16 |
range of spindle feed | mm | 0.10-1.25 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
step of spindle speed | steps | 8 | 16 | 16 | 16 |
distance from spindle nose to table | mm | 220~7000 (8.66"-39.37") | 320~1220 (12.60"-48.03") | 400~1600 (15.75"-63.00") | 550~2000 (21.65"-78.74") |
dimension of worktable | mm | 600x450x450 (23.62"x17.72"x 17.72") | 630x500x500 (24.80"x19.69"x 19.69") | 950x630x500 (37.40'*24.80'x17.72") | 1000x800x560 (39.37"x31.50"x22.04") |
dimension of base | mm | 1710x800x160 (67.32"x31.50"x6.30") | 2400x1000x200 (94.49"x39.37"x7.87") | 2900x1250x250 (114.17"x49.21"x9.84") | 3530x1400x300 (139.98"x55.12"x11.81") |
packing size | mm | 1870x970x2200 | 2600*1120*2600 | 3470x1470*2350 | 4160*1650*2480/ 3820x1630x1700 |
power of main motor | kW | 2.2 | 5.5 | 5.5 | 7.5 |
N W./G.W | kg | 1600/2000 | 3500/3900 | 7000/8000 | 11000/15000 |
