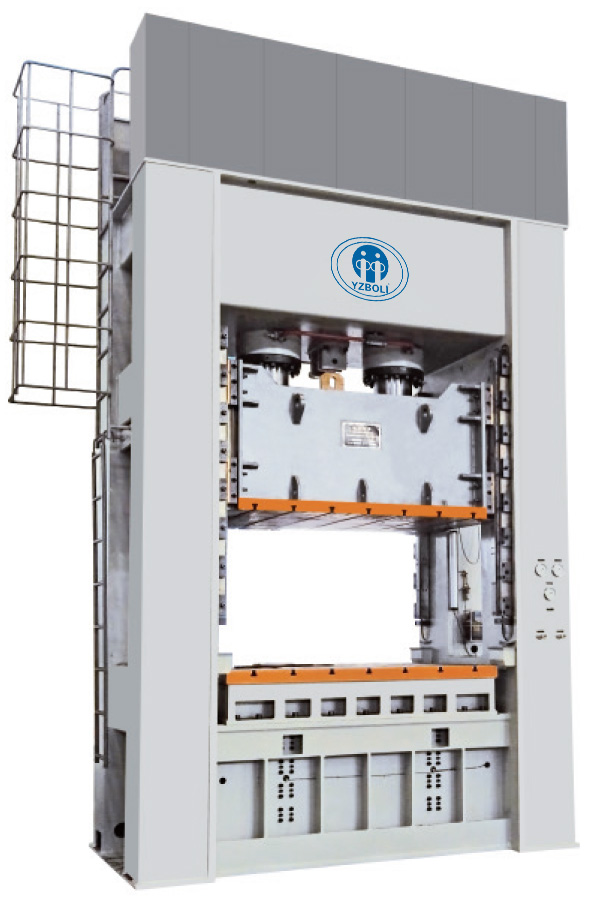

HP34 Series Framework Type Single-Movement Hydraulic Press for Sheet Metal Drawing (Stamping)

Features:
> Optimized design, the frame is entirely welded with steel plates, and treated to relive stress by tempering for high precision.
> Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.
> Centralized button control system, with adjustment, hand and semi-auto operateion modes at operator's choice(set-stroke single and set-pressure single).
> Four-angle and eight-side guide rail in high precision and with strong capacity against deflection, concentrated lubrication.
> New type of oil cylinder sealing components marked by high reliability and long service life.
> Sliding blocks operating in high speed, ensuring high efficiency.
> The slide operating pressure, no-load quick travel and low-speed movement can be adjusted according to technological requirements.
> Hydraulic cushion is fitted beneath the worktable; Adequate knockout hole and hydraulic cushion are prepared on the plate of worktable with the operating modes including drawing, ejection and no ejection.

Availability:

Quantity:



Inquire Add to Basket

Model:
HP34 Series
Brand:
BOLI

Product Description

Specification:

Type			HP34-100	HP34-160	HP34-200	HP34-250	HP34-315	HP34-400	HP34-400A	HP34-500	HP34-500A
Nominal Force		KN	1000	1600	2000	2500	3150	4000	2000+1000x2	5000	2500+1250x2
Return Force		KN	160	210	240	270	600	500	240+165x2	900	270+277x2
Slide Stroke		mm	510	560	710	710	800	800	800	900	1000
Max. Opening Height		mm	800	900	1120	1120	1200	1200	1200	1400	1400
Cushion Force		KN	400	630	630	1000	1250	1250	1250	2000	1000x2
Cushion Return Force		KN	147	250	250	320	360	360	360	780	320x2
Cushion Stroke		mm	200	200	250	250	300	300	300	350	350
Slide Speed	Idle Stroke	mm/s	150	160	200	220	140	180	180	150	170
	Pressing	mm/s	11-24	7-16	8-19	9-20	8-19	9-20	9-20	10-22	10-22
	Return	mm/s	130	100	140	160	90	160	130	120	130
Cushion Speed	Eject	mm/s	55	40	60	50	45	60	60	55	55
Cushion Speed	Return	mm/s	160	165	150	150	165	220	220	140	170
Bolster	LR	mm	690	1000	1200	1200	1500	1750	2000	2200	3000
Bolster	FB	mm	630	800	1000	1000	1200	1250	1500	1600	2000
Cushion Area	LR	mm	350	650	950	950	1120	1270	1420	1720	2320
Cushion Area	FB	mm	350	650	800	800	820	820	1120	1120	1420
Outline Size	LR	mm	2880	1980	3280	3380	3900	4250	4500	4700	5600
	FB	mm	1650	1770	2000	2100	2500	2750	3000	3100	3500
	Height Above Floor	mm	3250	3350	3900	4300	5200	5350	5600	5800	6200
Main Motor Power		KW	15	15	22	30	37	2x22	2x22	2x30	2x30
Weight		KG	7000	10300	13000	16200	25000	31000	40000	57000	85000

Type			HP34-630	HP34-630A	HP34-800	HP34-800A	HP34-1000	HP34-1250	HP34-1500	HP34-2000
Nominal Force		KN	6300	3150+1600x2	8000	4000+2000x2	10000	12500	15000	20000
Return Force		KN	900	450+210x2	1000	500+240x2	1350	850+600x2	900x3	1000+850x2
Slide Stroke		mm	900	1200	1000	1300	1000	1300	1500	1600
Max. Opening Height		mm	1500	1600	1800	1800	1800	1800	2000	2000
Cushion Force		KN	1250x2	1000x2	1600x2	1600x2	2000x2	2000x2	1250x4	1600x4
Cushion Return Force		KN	360x2	320x2	600x2	600x2	580x2	580x2	360x2	600x2
Cushion Stroke		mm	350	400	400	400	400	400	500	500
Slide Speed	Idle Stroke	mm/s	150	160	150	200	160	150	120	130
	Pressing	mm/s	10-22	8-19	8-18	8-18	8-19	7-15	6-13	7-15
	Return	mm/s	130	130	140	140	140	190	170	110
Cushion Speed	Eject	mm/s	45	60	45	45	45	45	39	45
Cushion Speed	Return	mm/s	165	185	125	125	155	155	135	125
Bolster	LR	mm	2500	3500	2200	3500	2500	3500	4000	4600
Bolster	FB	mm	1800	2000	1600	2000	1800	2000	2600	2600
Cushion Area	LR	mm	2020	2920	1570	2920	2020	2920	3220	3820
Cushion Area	FB	mm	1270	1420	1120	1420	1270	1420	2020	2020
Outline Size	LR	mm	5100	4700	4900	4800	4000	5500	5600	4200
	FB	mm	3400	3600	3300	3700	3500	3800	4000	4200
	Height Above Floor	mm	6200	7200	6700	8000	6800	7300	8000	8600
Main Motor Power		KW	2x37	2x37	3x30	3x30	3x37	3x37	3x55	3x75
Weight		KG	78000	115000	90000	130000	100000	180000	240000	360000
