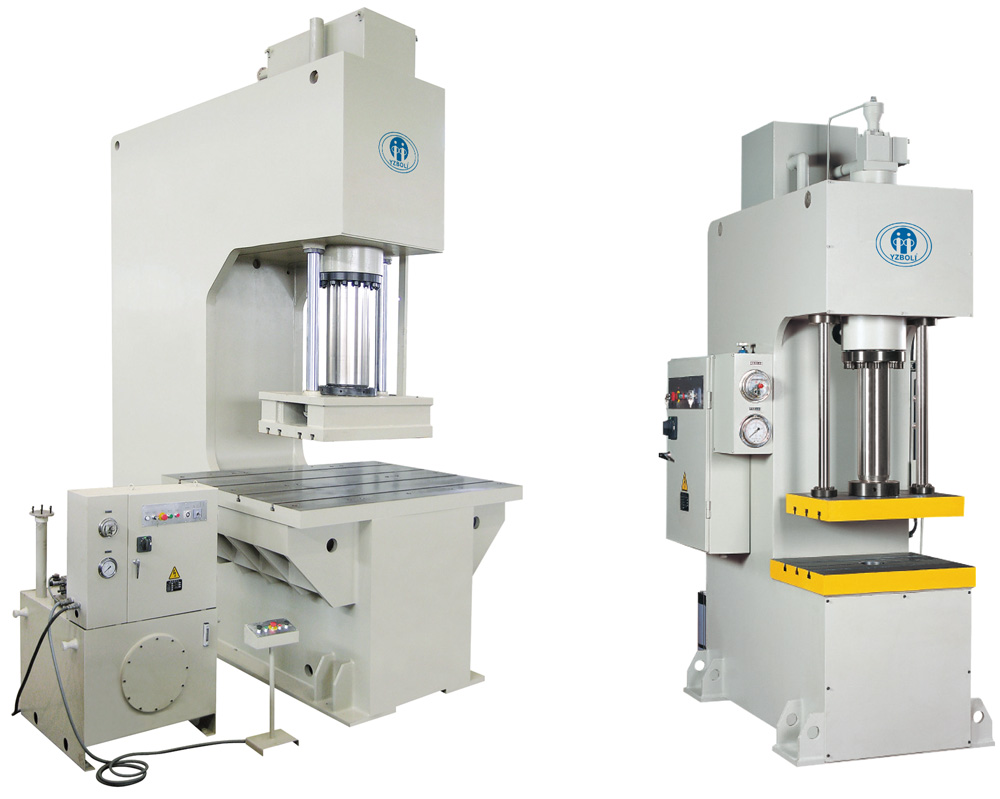

HP41 Series Single-Column Hydraulic Straightening and Mounting Press

Features:

> It adopt intelligent structure, c type single arm frame structure, has the feature such as good reliable, simple structure and easy operation.

> The frame is entirely welded with steel plates and treated to relive stress by tempering.

> Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.

> Hydraulic system adopt pressure pre-release device, low impact of hydraulic pressure.

> Independent electrical control, reliable, audio-visual and convenient for maintenance.

> Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice(semi-automatic has two type tech: Set-stroke single and set-presser single).

> The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
HP41 Series
Brand:
BOLI

Product Description

Specification:

Type				HP41-40	HP41-63	HP41-80	HP41-100	HP41-100A	HP41-160	HP41-200	HP41-315A	HP41-315	HP41-400	HP41-500	HP41-630
Nominal Force			kN	400	630	800	1000	1000	1600	2000	3150	3150	4000	5000	6300
Return Force			kN	80	69	115	135	135	210	240	300	300	350	580	650
Max. Hydraulic Pressure			Mpa	25	25	25.5	25	25	26	25	25	25	25	25	26
Slide Stroke			mm	400	500	500	500	500	560	710	800	800	800	900	1100
Throat Depth			mm	280	320	320	380	500	400	500	800	1250	1250	1500	1500
Opening Height	Straightening		mm	600	700	700	700	750	900	1120	1250	1250	1250	1500	1500
Opening Height	Pressing		mm	800	1000	1000	1000	1100	1120	1500	1600	1600	1700	1900	1900
Slide Speed	Idle Stroke		mm/s	110	130	130	150	150	150	200	200	200	170	200	180
	Pressing		mm/s	9-22	6-14	8-18	7-15	7-15	7-15	7-18	7-15	7-15	5-12	7-15	5-12
	Return		mm/s	110	125	125	120	120	110	140	150	150	130	130	115
Bolster	LR	Straightening	mm	1100	1200	1200	1400	2000	1600	1600	1800	2000	2300	2500	2800
		Straightening	mm	1100	1200	1200	1400	2000	1600	1600	1800	2000	2300	2500	2800
		Pressing	mm	620	720	720	850	1000	1000	1200	1250	1400	1600	1600	1700
	FB		mm	520	600	600	720	800	720	800	1000	1200	1300	1400	2000
Slide	LR		mm	560	620	700	700	700	700	750	1050	1150	1300	1300	1500
Slide	FB		mm	420	460	500	500	500	500	600	800	900	900	1000	1500
Bolster Height Above Floor			mm	720	750	780	820	820	700	600	600	600	600	600	600
Shank Hole			mm	φ120	φ150	φ180	φ200	φ200	/	/	/	/	/	/	/
Outline Dimension	LR	Straightening	mm	1250	1280	1350	1400	2000	1600	1600	1800	2000	2300	4000	4300
	LR	Pressing	mm	1250	1280	1350	1400	1400	1600	1400	1450	1500	1700	3600	3800
	FB		mm	1300	1450	1550	1900	2250	2300	2600	3200	3800	3900	4600	4600
	Height Above Floor	Straightening	mm	2600	2750	2860	2920	3020	3200	3800	4200	4400	4700	5300	6010
	Height Above Floor	Pressing	mm	2800	3050	3160	3220	3370	3350	4200	4500	4700	5000	5700	6300
	Height Below The Ground Level		mm	/	/	/	/	/	300	500	900	1000	1100	1200	1300
Main Motor Power			kW	5.5	5.5	7.5	7.5	7.5	11	18.5	22	22	22	18.5×2	18.5×2
Weight	Straightening		kg	2800	4200	5300	6400	7400	9000	12500	27000	35000	44000	57000	79000
Weight	Pressing		kg	3000	4500	5600	6800	7800	10000	14000	29000	37000	47000	60000	83000
