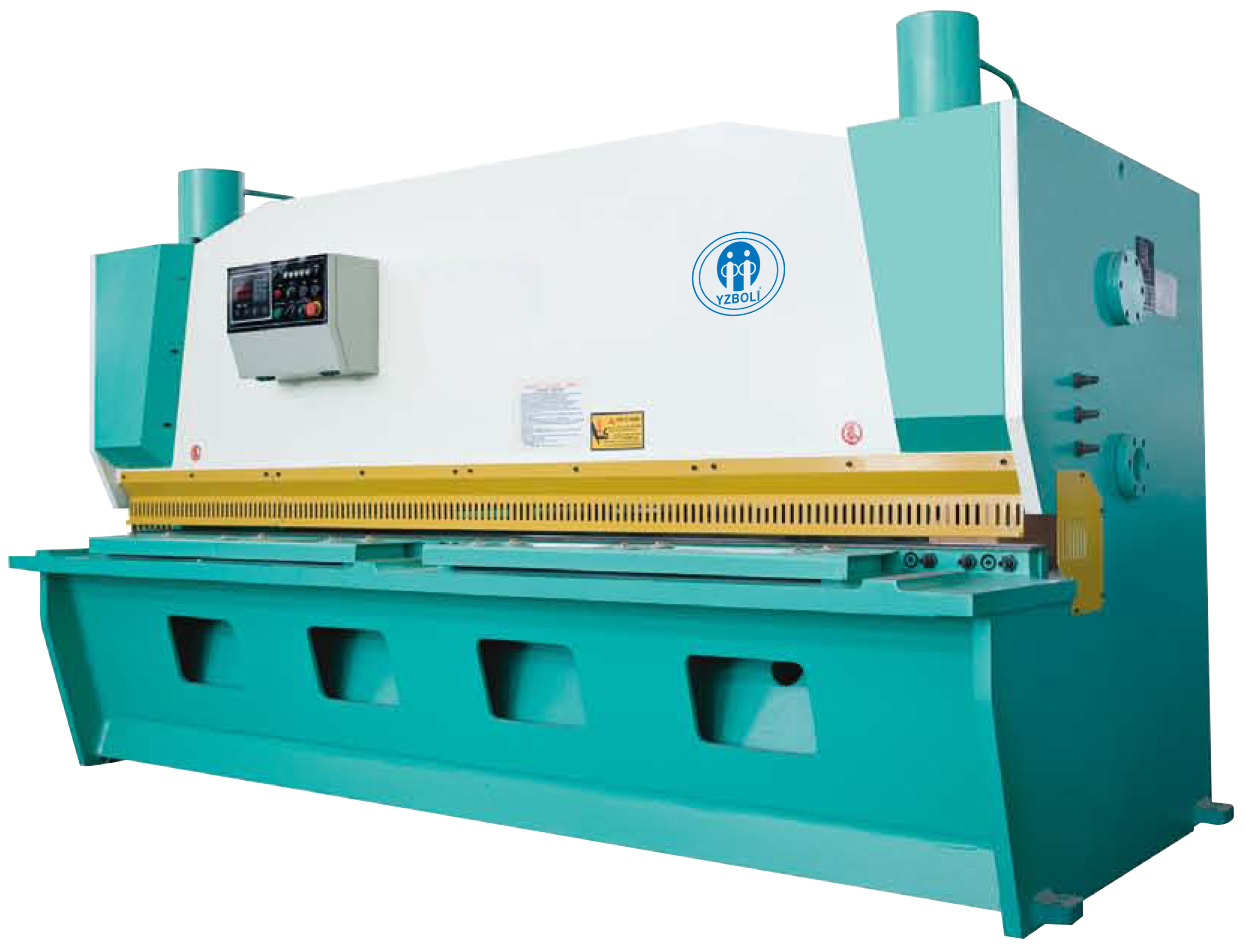

HS8 Series Metal Steel Sheet Plate CNC Hydraulic Guillotine Shear

Features:

> All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.

> Integrated hydraulic transmission system, with good reliability.

> Triple support rolling guide rail to eliminate gaps of support and ensure shearing quality.

> Mechanical rear stopper with manual fine tuning, and digital indication.

> Clearance in between shearing blades adjusted by hand wheel to be quick, accurate and convenient.

> Rectangular blades with cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.

> Upper blade holder has inward tilling structure to facilitate material feed in and also enhance accuracy of the work piece.

> Function of shearing in sections, function of aligning with light.

> Optional: rear material holding device ( or for other choice).

Availability:

Quantity:



Inquire Add to Basket

Model:
HS8 SERIES
Brand:
BOLI

Product Description

Specification:

Model	Max. Shearing Thickness	Max. Shearing Width	worktable height	shearing angle	number of stroke	back gauge adjustment	Main Motor Power
Model	mm	mm	mm	°	min -1	mm	KW
HS8-6*2500	6	2500	800	30′-1°30′	16-35	20-600	7.5
HS8-6*3200	6	3200	800	30′-1°30′	14-35	20-600	7.5
HS8-6*4000	6	4000	800	30′-1°30′	10-30	20-600	7.5
HS8-6*5000	6	5000	900	30′-1°30′	10-30	20-800	11
HS8-6*6000	6	6000	1000	30′-1°30′	8-25	20-800	11
HS8-8*2500	8	2500	800	30′-2°	14-30	20-600	11
HS8-8*3200	8	3200	850	30′-2°	12-30	20-600	11
HS8-8*4000	8	4000	900	30′-2°	10-25	20-600	11
HS8-8*5000	8	5000	1000	30′-2°	10-25	20-800	15
HS8-8*6000	8	6000	1050	30′-2°	8-20	20-800	15
HS8-12*2500	12	2500	840	30′-2°	12-25	20-800	15
HS8-12*3200	12	3200	900	30′-2°	12-25	20-800	15
HS8-12*4000	12	4000	940	30′-2°	8-20	20-800	15
HS8-12*5000	12	5000	1000	30′-2°	8-20	20-1000	22
HS8-12*6000	12	6000	1060	30′-2°	6-20	20-1000	30
HS8-16*2500	16	2500	840	30′-1°30′	12-20	20-800	22
HS8-16*3200	16	3200	900	30′-1°30′	12-20	20-800	22
HS8-16*4000	16	4000	940	30′-1°30′	8-15	20-800	22
HS8-16*5000	16	5000	1000	30′-1°30′	8-15	20-1000	30
HS8-16*6000	16	6000	1100	30′-1°30′	6-15	20-1000	37
HS8-20*2500	20	2500	900	30′-3°	10-20	20-800	30
HS8-20*3200	20	3200	950	30′-3°	10-20	20-800	30
HS8-20*4000	20	4000	1100	30′-3°	8-15	20-800	30
HS8-20*5000	20	5000	1100	30′-3°	8-15	20-1000	37
HS8-20*6000	20	6000	1200	30′-3°	6-15	20-1000	37
HS8-25*2500	25	2500	900	30′-1°30′	8-15	20-800	37
HS8-25*3200	25	3200	950	30′-1°30′	8-15	20-800	37
HS8-25*4000	25	4000	1100	30′-1°30′	6-12	20-1000	37
HS8-32*2500	32	2500	1000	30′-4°	6-12	20-1000	55
HS8-32*3200	32	3200	1100	30′-4°	8-12	20-1000	55
HS8-40*2500	40	2500	1200	30′-4°	4-10	20-1000	55
HS8-40*3200	40	3200	1200	30′-4°	4-10	20-1000	55
