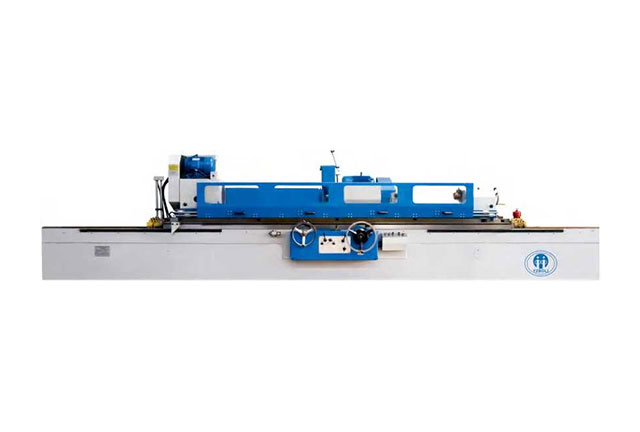

M13 Cylindrical Grinding Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Standard Accessories	Optional Accessories
coolant tank/wheel penphecy dresser base(without diamond pen)	balance stand/magnetic seperator apparatus/paper filter
flange and wheel extractor/standard grinding wheel/balancing artx)r/working lamp/	apparalus/center grinding attachment/close strady rest
leveling wdge/open steady rest/inlemal gnnding attchemenl(cxily for M I4 senes)

Technical Parameters

Model No. GENERAL CAPACITY	Unit	MW1320	M1332	M1350	M1363	M1380
distance between centers	mm	500, 750	1000,1500,2000,3000	1500, 2000,3000	3000, 4000, 5000	3000, 4000, 5000
center height	mm	135	180	270	335	500
dia. ground(O.D)	mm	5-200	8~320	25-500	30-630	50-800
max length ground(O D)	mm	500, 750	1000,1500,2000,3000	1500, 2000.3000	3000, 4000, 5000	3000, 4000, 5000
max. weight of work piece	kg	100	150	1000	3000	5000
WORKHEAD
center taper	MT	4	5	6	metric 80#	metric 100#
spindle speed	r/min	50Hz 25~380 stepless	26,52,90,130,180,260	50Hz: 18-180	50Hz:10~100	50Hz6~60
WHEELHEAD
wheel spindle speed	r/min	1335	1100	870	740	740
wheel head rapid travel	mm	50	50	100	100	100
max. travel	mm	205	235	438	475	550
hand feed per. rev		rough:2 fine:0.5	rough:2 fine:0.5	rough :4 fine:0.5	rough:6 fine:0.5	rough :6 fine:0.5
hand feed per gra		rough0 01 tine00025 rough001 fine00025 rough002fine0 0025 rough0 02fine0 0025 rough002fine0.0025
wheel size(ODxWxlD)	mm	500*50x203	600x65x305	750x75*305	750x75*305	90075305
peripheral velocity	m/s	35	35	35	35	35
TABLE
hand feed per. rev	mm	6	6	5	5	5
max. swivel angle of table(clockwise)	° °	3° 9°(500), 8°(750)	3°(1000, 1500), 2°(2000, 3000)	3°(1500), 2°(2000, 3000)	2°(3000), 1°(4000, 5000)	2°(3000) 1°(4000, 5000) 3°(3000), 2°(4000),
max. swivel angle of table(anticlockwise)		3° 9°(500), 8°(750)	7°(1000),6°(1500), 5°(2000). 3°(3000)	6°(1500), 5°(2000),3°(3000)	3°(3000), 2°(4000), 1. 5°(5000)	3°(3000), 2°(4000),1.5°(5000)
longitudinal speed range of table	m/min	0.1-4	0.1-4	0.3-3	0.1-2.5	0.1-2.5
TAILSTOCK
center taper	MT	4	4	6	metric 80#	metric 100#
quill travel	mm	30	30	70	100	100
MOTOR
wheelhead motor power	kW	55	11	15	7/11	18
workhead motor power	kW	075	0.75/1 5	2.2/36	15	18
MACHINE
G.W	T°	4(500), 4.2(750)	5.3(1000). 6.1(1500), 7.96(2000), 9 9(3000)	11.2(1500), 13(2000), 17.4(3000) 322x200x205(1000)	28(3000), 34(4000), 39(5000)	33(3000), 40(4000), 45(5000)
packing dimension	mm	235x203*205(500)	422200205(1500)	610x228*210(2000)	610*228x210(1500)
		275x203x205(750)	540*200x205(2000)	810x228x210(3000)	880x280x220(3000)
				739x200x205(3000)
