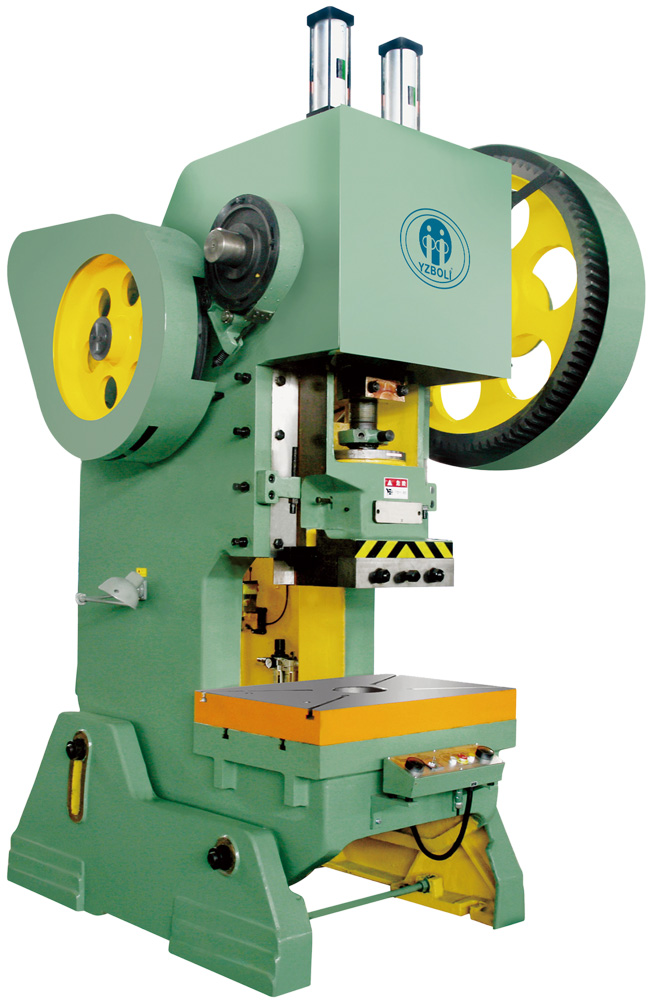

MP23 series C-frame inclinable press

Features:

> MP23-25 open type inclinable press machine is the first to adopt rolling rather than the commonly used sliding bearing( copper bearing) for the transmission gear, which make the transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worm copper bearing.

> MP23-25 open type inclinable press machine is unique in the industry. Other 35T press machines produced by other manufactures in the country all adopt a machine body of the 25T machine and copper bearing for the transmission gear. We are the only manufacture that redesigns the machine body, the 35T machine body is far more heavier than the 25T machine body, and the strength is also better, with the rolling bearing transmission( low gear noise), which equal to the light 40T press machine.

> the 80T-level press machine all adopt the structure of pneumatic dual balance cylinder, which has small fluctuate of the balance force and it balances the slider and the die, which prevent the lathe from being unstable. And it can also avoid the clash and noise caused by the converse stress of gears in transmission, eliminate the clearance between connecting rod and slide, reduce the compact and wear of stress parts, and avoid accidents caused by the falling of slider when the brake falls or the connecting rod ruptures

Availability:

Quantity:



Inquire Add to Basket

Model:
MP23

Product Description

Specification:

Model			MP23-6.3	MP23-10	MP23-16	MP23-25	MP23-35	MP23-40	MP23-63B	MP23-80	MP23-100	MP23-125
nominal force		KN	63	100	160	250	350	400	630	800	1000	1250
nominal stroke		mm	2	2	2	2.5	3.5	6	7	7	7	8
slide stroke		mm	35	45	55	65	80	90	110	120	140	150
SPM	high speed	Times/min	170	145	125
SPM	low speed	Times/min				55	50	45	40	38	38	35
max. die height		mm	150	180	220	270	290	320	390	440	480	500
die height adjustment		mm	30	35	45	55	60	65	80	90	100	100
between slide center and frame		mm	110	130	160	200	220	250	310	350	380	390
between columns		mm	150	180	220	270	280	340	420	450	560	550
slide area(FBxLR)		mm	120x140	150x170	180x200	220x250	220x250	260x300	360x400	360x430	480x540	480x540
shank hole(dia x depth)		mm	Φ 30x55	Φ 30x55	Φ 40x60	Φ 40x60	Φ 40x60	Φ 50x70	Φ 50x70	Φ 60x75	Φ 60x75	Φ 60x75
bolster(FBxLR)		mm	200x310	240x370	300x450	370x560	400x610	460x700	570x860	650x950	710x1080	720x1100
bolster opening dia		mm	60	80	100	120	120	150	180	200	220	180
bolster thickness		mm	30	35	40	50	60	65	80	100	120	130
Max. inclined angle		°	45	35	35	30	30	30	20	20	15	13
bolster serface height		mm	750	730	750	800	815	850	850	850	850	860
outline dimension(FBxLRxH)		mm	780x620x1503	9000x665x1658	1150x847x1910	1345x950x2130	1460x1058x2225	1721x1335x2488	1958x1500x2868	2060x1715x3290	2404x1790x3625	2504x1790x3715
main motor power		KW	0.75	1.1	1.5	2.2	4	5.5	7.5	7.5	11	11
net weight		KG	400	576	1085	1780	2650	3540	5500	7390	10800	12035
