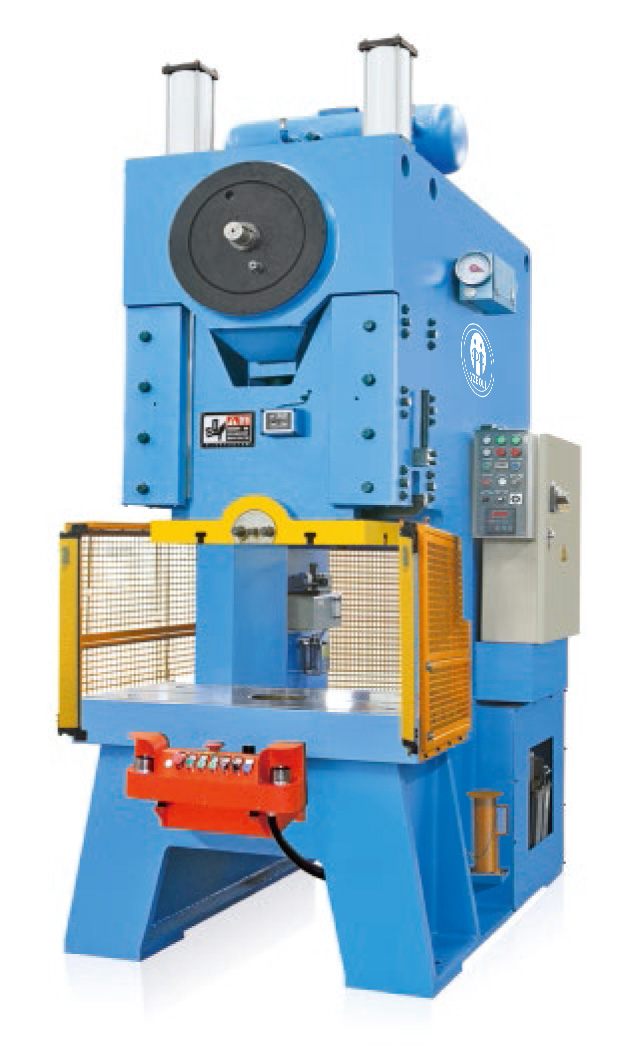

MPL21 Series C-type Frame Fixed Table Press

8-step variable Stroke length.
 High accuracy, reach JIS1
 High ngidity, sleel-welded frame .
High precision, B-side long guide rail .
Dry type pneumatic clutch-brake unit .
Imported safety dual-sotenotd valve for clutch.
 High sensitive HOLP .
Automatic oil cycle lubncation system.
 Die heigh auto matil adjustment (25T manual adjustment).
 PLC system.
Optional components, output shaft, air cushion, slide knockout device, automatic feeder, etc
Availability:
Quantity:
Inquire Add to Basket

  • MPL21

  • BOLI

Technical Parameters

Model

Unit

MPL21 -16

MPL21

-25A

MPL21

-45A

MPL21 -63A

MPL21

-80A

MPL21 -100 A

MPL21

-125

MPL21 -160 A

MPL21

-200

MPL21 -250

MPL21 -315

MPL21 -400

Nominal pressure

KN

160

250

450

630

800

1000

1250

1600

2000

2500

3150

4000

Nominal pressure Stroke

mm

3

3

4

4

4

5

5

6

7

8

8

8

Stroke of slide

mm

8 3^0

10.5-100

11.5-110

12.5-120

12.5-120

15-140

18.6-150

16.5-160

18.7-180

23-220

250

250

Stroke

S.PM

85-40

70-120

60-100

50-80

50-80

45-65

42-60

35-55

30-50

30-45

25-40

25-35

Max die set height

mm

220

250

290

300

300

360

400

460

480

500

550

550

Die height adjustment

mm

50

50

70

80

80

90

90

100

110

120

120

120

Depth of throal

mm

170

185

235

260

260

320

320

330

410

410

480

480

Distance between upnghts

mm

360

440

510

570

570

570

600

690

820

820

1050

1050

Bottom size of

slide

L-R

mm

400

460

500

600

600

700

700

790

900

950

1300

1300

F-B

mm

240

270

300

350

350

400

400

460

570

620

720

720

Hole for punch

shank

Diameter

mm

Φ30

Φ40

Φ50

Φ50

Φ50

Φ60

Φ60

Φ70

Φ70

Φ70

Φ70

Φ70

Depth

mm

50

60

60

60

60

80

80

80

80

100

100

100

Size of table

L-R

mm

600

700

800

850

900

1000

1100

1200

1350

1400

1700

1850

F-B

mm

320

350

450

500

500

630

630

650

800

800

940

940

Thickness

mm

60

70

80

90

90

125

150

180

200

200

200

200

Size of opening in table

Diameter

mm

Φ110

Φ110

Φ110

Φ125

Φ125

Φ125

Φ140

Φ160

Φ180

Φ180

Φ250

Φ250

Single speed motor power

KW

22

3

5.5

7.5

75

11

15

15

22

30

30

37

Overall dimensions

L-R

mm

900

1000

1070

1190

1190

1300

1300

1410

1580

1630

1780

1810

F-B

mm

1325

1440

1790

1850

1850

2010

2150

2280

2680

2810

3260

3400

Height

mm

2200

2450

3600

2950

2950

3080

3150

3550

3980

4300

4250

4300

Total weight

kg

2500

3000

4200

6200

6400

9200

10500

14300

21000

25000

33000

39000
