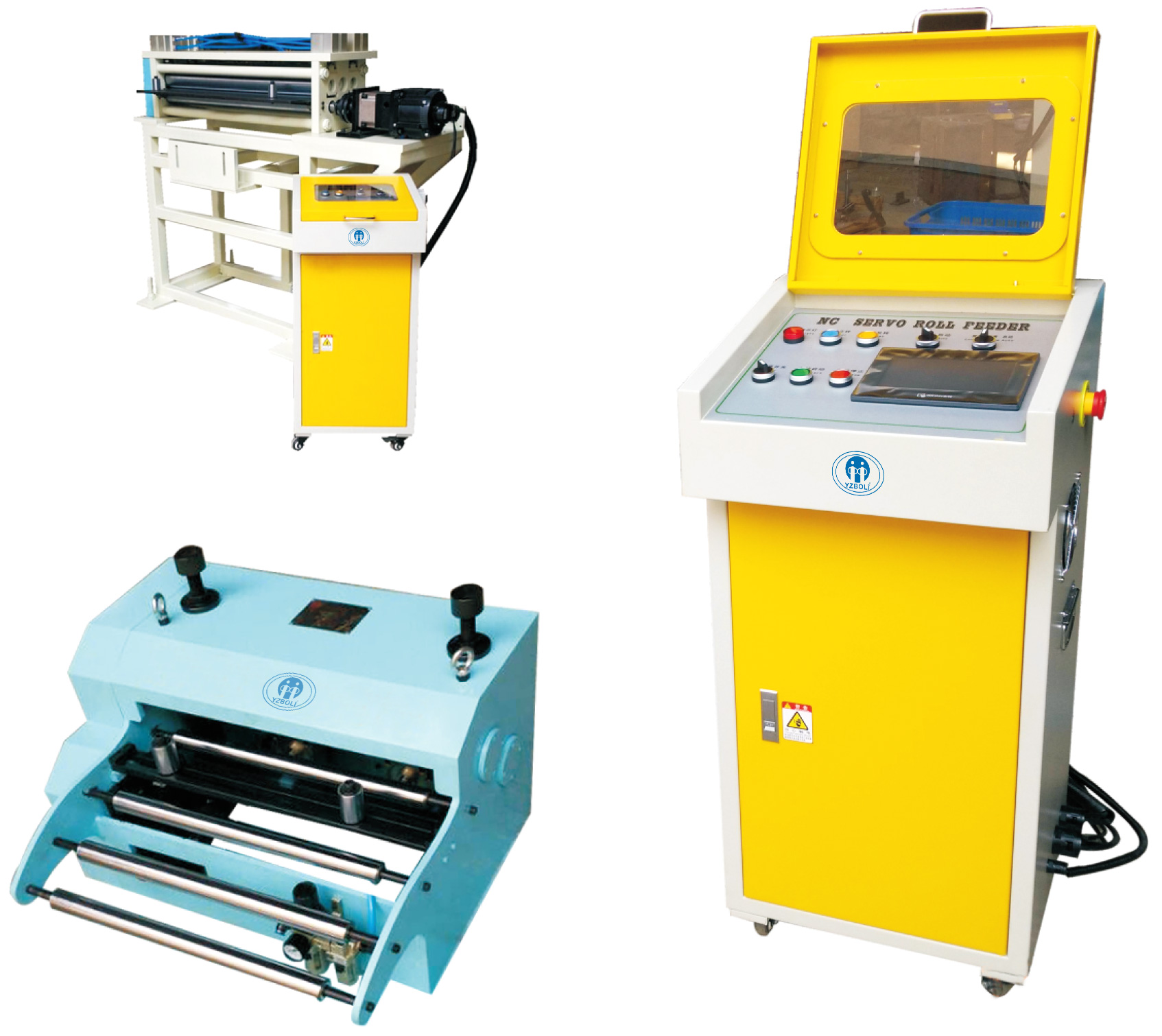

NCF Servo Roll Feeder-Pneumatic Relax

High-precision feeding; the high-tech industry for the advent of computer-controlled closed-circuit feedback system, so ensure accuracy wrth in ±0.03mm.
Stage type feeder can. You can enter 20 different sets of feed length .each providing 999 times stamping times, to meet the special products processing and production (optional)
Personalized manual mode: you can enter the appropriate section of manual 3 speed, user easier to operate, accurate positioning of the material sent to the mold.
High efficiency relaxation device: high-speed stamping can be adapted to the needs of relxation.
The feed length setting one the control apnel, direct input feed length, can achieve the required feed distance
The feed mechanism roller hollow type, light weight, small rotary inertia, surface hardness HRC60 hard chrome plating, wear-resistant, long life
The overall welded body,never deformed after annealing treatment, overall more rigid.
Movable cabinets.remote control handle to make operation easier.

Availability:

Quantity:



Inquire Add to Basket

Model:
NCF-200
Brand:
BOLI

Product Description

Technical Parameters

Model		Unit	NCF-200	NCF-300 NCF-300A NCF-300B	NCF400 NCF400A NCF400B	NCF-500 NCF-500A NCF-500B	NCF-600 NCF-600A NCF-600B	NCF-70O NCF-700A NCF-700B	NCF-800 NCF-800A NCF-800B	NCF-1000 NCF-1000A NCF-1000B	NCF-1300 NCF-1300A NCF-1300B	NCF-1600 NCF-1600A NCF-1600B
Matenal width		mm	200	300	400	500	600	700	800	1000	1300	1600
Material thickness Standard type Matenal thickness & width		mm	0.2-2.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2	0.2-3.2
	0.2-1 0	mm	200	300	400	500	600	700	800	1000	1300	1600
	2.0	mm	180	280	300	350	400	450	480	550	650	700
	3.2	mm	80	100	120	150	180	210	240	280	320	380
Material width A-type Standard type Material thickness& width		mm	-	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4 5	0.3-4.5	0.3-4.5	0.3-4.5
	0.3-2.2	mm	/	300	400	500	600	700	800	1000	1300	1600
	3.2	mm	/	240	320	400	460	520	560	580	600	650
	4.5	mm	/	150	220	250	280	300	320	350	360	380
Material width B-type Standard type Material thickness& width		mm	/	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0	0.5-6.0
	0.6-3.0	mm	/	300	400	500	600	700	800	1000	1300	1600
	4.5	mm	/	240	320	400	460	520	560	580	600	650
	6.0	mm	/	150	220	250	280	300	320	350	360	380
Feed Length		mm	9999 .99	9999 .99	9999. 99	9999 .99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99
Feed Speed		m/min	20	20	20	20	20	20	20	20	20	20
Servo Motor		KW	AC1. 0	AC1 .5	AC1. 5	AC2.0	AC2.0	AC2.0	AC3. 0	AC3.0	AC4. 4	AC5.5
Power Supply		380V	380V	380V	380V	380V	380V
Pass Line		mm	70-170	70-170	70-170	70-170	70-170	90-190	90-190	90-190	90-190	90-190
Machine LWH		mm	340x 550x 450	400x 600x 450	540x 700x 450	640x 800x 450	740x 900x 450	840x 1040x 450	940x 1040x 450	1040x 1240x 450	1340x 1340x 450	1640x 1440x 450
