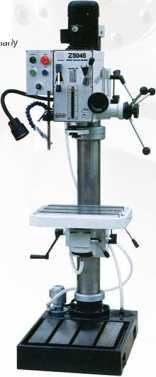

Upright drilling machine

Featruea:

■Drilling ,milling and tapping

■Head swivels 360° horizontally

■Headstock and worktable up&down perpendicularly

■Super high column

■Precision micro feed

■Positive spindle lock

■Distinct auto device for releasing tools,operate very easily

■Gear driven,lower noise

Standard accs.

■Wedge

■Tie rod

■Washer

Model	Z5032/Z5040/Z5045	Z5032/1 /Z5040/1 /Z5045/1
Max. drilling capacity	Φ32mm/Φ40mm/ Φ45mm	Φ32mm / Φ40mm / Φ45mm
Spindle taper	M.T.3 or R8/M.T.4 or R8/M.T.4 or R8
Spindle trave	130mm
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Min.distance from spindle axis to column	283mm
Max. distance from spindte nose to worWable	725mm	700mm
Max. distance from spindte nose to stand table	1125mm
Max. travel of headstock	250mm
Swivel angle of headslock (horizontally/perpendicular)	360°±45°
Max. travel of worktable bracket	600mm
Worktable size of avakablity	380x300mm	730x210mm
Swivel angle of table horizontally	360°
Tabte leaned	±45°	/
Size of stand worktable of avaliabilty	417x416mm
Worktable travel(X/Y)	/	500mm/205mm
Vertical travel of worktable	/	570mm
Motor power	0.75KW/1.1KW/1.5KW	0.75KW/1.1KW/1.5KW
Speed of motor	1400r.p.m	1400r.p.m
Net weigh/Gross weight	430kgs/480kgs	430kgs/480kgs
Packing size (LxWxH)	1850x750x1000mm	1850x750x1000mm
